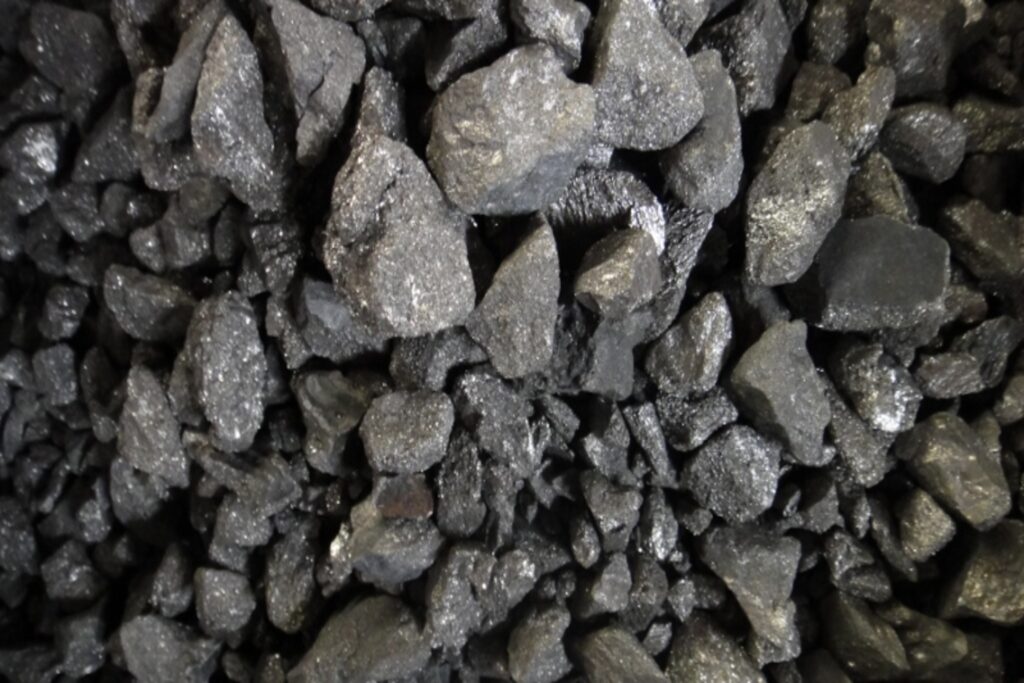

Ferro boron is unusual among steelmaking alloys. For most additions, more is better or at least harmless. Add extra manganese and the steel still meets spec. Add extra silicon, you may need to adjust the heat, but the steel is still usable. Boron is different. The effective range is extremely narrow and going above it can make the steel worse, not better.
The target residual boron in steel is typically 0.0005% to 0.0030%, which is 5 to 30 ppm. Below that range, the hardenability effect is too small to matter. Above it, boron can cause hot shortness, reduce impact toughness and even lower hardenability by forming boron-rich precipitates at the grain boundaries.
That narrow window is why the addition rate matters more for ferro boron than for almost any other alloy. This article explains how to calculate the right amount for different steel grades, how to adjust based on your actual recovery and what to do when the results do not match the calculation.
Starting with the Target Residual
The calculation starts with the target residual boron in the final steel. That number comes from your customer specification or from your own internal standard.
For most quenched and tempered steels, the target is around 0.0010% to 0.0020% boron. For some HSLA grades, it may be slightly lower, around 0.0008%. For certain specialty applications, the target may be as high as 0.0025%. Your specification will tell you the exact requirement.
Once you know the target residual, you can work backwards to the addition rate. The formula is straightforward. Multiply the target residual by the heat weight to get the total boron needed in kilograms. Then divide by the boron content of the ferro boron and by the expected recovery. The result is the amount of ferro boron to add.
For example, a 100 ton heat with a target of 0.0015% boron needs 1.5 kg of boron in the steel. If the ferro boron contains 18% boron and the expected recovery is 80%, you need about 10.4 kg of ferro boron. That is a small amount, which is why accurate weighing and consistent addition practice are essential.
Why Recovery Varies and How to Manage It
The recovery of boron from ferro boron is not fixed. It depends on several factors and understanding them helps you adjust the addition rate to match your actual practice.
Oxygen is the first factor. If the steel is not fully deoxidized when the ferro boron is added, the boron will react with oxygen instead of dissolving in the steel. It causes recovery drops. Ensuring the steel is properly killed with aluminum before the boron addition is the single most important step for consistent recovery.
Boron has a strong affinity for nitrogen. Adding titanium or zirconium before the boron ties up the nitrogen and protects the boron. Without that protection, recovery can drop by 20% or more.
Addition method also effects the recovery. Boron added in the furnace has lower recovery because the furnace atmosphere is oxidizing. Boron added in the ladle after deoxidation has higher recovery. Deep addition with good stirring gives better results than surface addition.
Most mills find that recovery falls between 70% and 90% when the practice is well controlled. If your recovery is consistently outside that range, the issue is usually one of the three factors above.
What’s the Addition Rate for Different Grades
The target residual boron and the optimal addition rate vary by steel grade. Here are some general guidelines, but keep in mind that your own recovery data should always take precedence.
Quenched and tempered steels for automotive components typically target 0.0010% to 0.0020% boron. The addition rate is usually 0.08 to 0.15 kg of ferro boron per ton of steel, assuming 18% boron content and 80% recovery.
For high strength low alloy steels often target slightly lower, it’s around 0.0008% to 0.0015%. The addition rate may be 0.06 to 0.12 kg per ton.
Spring steels and bearing steels sometimes use boron at the lower end of the range, 0.0005% to 0.0010% approximately, because these grades are sensitive to boron-rich precipitates.
These numbers are starting points. Your actual addition rate should be based on your own recovery data, which you can only get by keeping records and adjusting over time.
How to Fine Tune Your Addition Rate
The best way to dial in the right addition rate is to treat it as an ongoing process, not a one-time calculation.
Start with the calculated rate based on your expected recovery. After the heat is cast and the boron analysis comes back, compare the actual residual to the target. If the actual is lower than the target, increase the addition rate slightly. If the actual is higher, decrease it.
Make one adjustment at a time. Do not change the addition rate and the addition method at the same time or you will not know which change made the difference.
Keep records of every heat. Write down the addition rate, the ferro boron content, the addition method, the actual residual boron and any process changes. Over time, you will build a dataset that tells you exactly what recovery to expect under your conditions.
Review the data periodically. If recovery starts to drift, something in your practice has changed. It might be a different supplier of ferro boron, a change in deoxidation practice or a change in the steel grade. The records will help you identify the cause.
What to Do When the Results Are Off
Sometimes the boron residual comes back outside the target range, even when you follow the same procedure you have always used. Here is how to troubleshoot.
If the boron is too low, verify that the ferro boron was actually added to the heat. Sounds obvious, but mistakes happen. Then, check the deoxidation practice. If the aluminum addition was insufficient or the timing was wrong, the boron may have been lost to oxygen. At the same time, it is important to check the nitrogen level. The boron may have formed boron nitride due to high nitrogen.
In contrary, if the boron is too high, check the weighing accuracy. A small error in the ferro boron weight can make a big difference because the addition rate is so low.
If the boron is inconsistent from heat to heat, the problem is usually in the addition method. Surface addition gives more variable recovery than deep addition. Manual addition gives more variable recovery than automatic feeding. Look for ways to make the addition more consistent.
Why the Small Addition Is Hard to Control
The difficulty with ferro boron is not the chemistry. It is the scale. Adding 10 kg of ferro boron to a 100 ton heat is like adding a teaspoon of salt to a swimming pool. The margin for error is small.
That is why precision matters at every step. The ferro boron should be weighed accurately, not estimated. The addition should be made at the right time, not whenever it is convenient. The steel should be properly deoxidized, not just mostly deoxidized.
Mills that treat ferro boron as a precision addition get consistent results. Mills that treat it as a bulk addition get inconsistent results and blame the alloy.
Working with Your Supplier
Your ferro boron supplier can help you get better results. A good supplier will provide consistent boron content, controlled particle size and accurate certificates. They will also be able to advise on addition practice and troubleshoot problems.
When you evaluate a supplier, ask about the consistency of their product. If the boron content varies by more than 0.5% from batch to batch, your addition calculations will be unreliable. Ask about the particle size distribution. If the material has too many fines, the recovery will be lower.
For a detailed look at what to check when you receive a ferro boron shipment, see our article on ferro boron in practice.
Summary
Determining the right ferro boron addition rate is not difficult, but it does require attention to detail. The effective range for boron is narrow and the addition is small. A mistake in weighing or timing can push the residual outside the target range.
Start with the calculation, adjust based on your own recovery data and keep records. Check the deoxidation and nitrogen control before blaming the alloy. And work with a supplier who provides consistent product and can help you troubleshoot when things go wrong.
